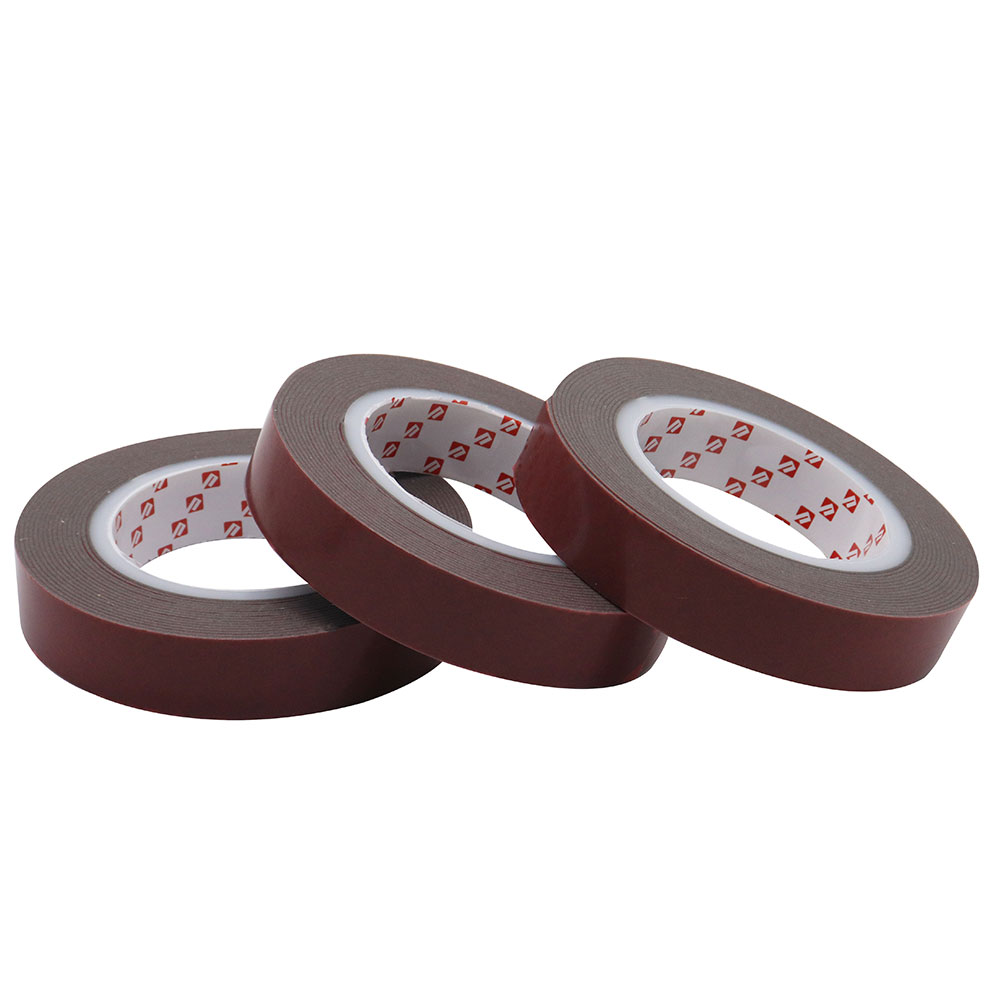

P3000GT series double-sided acrylic foam tape is an industrial adhesive tape made of acrylic foam as the substrate, evenly coated with acrylic-based high-performance pressure-sensitive adhesive on both sides, and then combined with a release film. It has excellent adhesion performance and high flexibility. This adhesive tape is specially designed for the internal and external parts and accessories of automobiles. P3000GT series provides the same adhesion performance as traditional acrylic foam adhesive tape, as well as initial adhesion performance in low temperature environments, improving the workability at low temperatures.
The shrinkage and elongation of plastic components caused by temperature changes have good stress relaxation performance, which is very important for automotive component accessories.
1. Body side moldings, sealing strips, window moldings and logos
2. Bumper moldings, roof moldings, door edge moldings
3. End rubbers, lining protectors, mudguards
4. Large side shields, side shields, etc.
Model | P3020GT | P3040GT | P3060GT | P3080GT | P3110GT | P3120GT | P3160GT | P3200GT |
Color | Grey | Grey | Grey | Grey | Grey | Grey | Grey | Grey |
[mm] Total thickness | 0.20 | 0.40 | 0.60 | 0.80 | 1.00 | 1.20 | 1.60 | 2.00 |
Base material | – | – | – | – | – | – | – | – |
Type of adhesive | Acrylate | |||||||
Peeling force at 180° ( SUS , 20min ) |
24 | 24 | 28 | 28 | 30 | 30 | 30 | 30 |
(kg/m³) Density | 680~720 | 680~720 | 680~720 | 680~720 | 680~720 | 680~720 | 680~720 | 680~720 |
(%) Elongation | 950~1000 | 950~1000 | 950~1000 | 950~1000 | 950~1000 | 950~1000 | 950~1000 | 950~1000 |
Retention at room temperature [h/1kg] | >72 | |||||||
[ ℃ ] Long-term resistance | 100 | |||||||
[ ℃ ] Short-term resistance | 150 | |||||||
Can replace 3M | GT7104 | GT7104 | GT7106 | GT7108 | GT7110 | GT7112 | GT7116 | GT7120 |
Product Features
1. Good cushioning performance
2. Excellent low temperature adhesion performance
3. High final adhesion and peel resistance
4. Can be used in various weather conditions, resistant to solvents and high temperatures
5. Good stress relaxation performance, suitable for contraction and elongation of automotive components caused by temperature changes
Product specifications
1. 980mm*33m
2. Other customizations
